Product Name: Single Slope, Single Sheeting, 4 Facade
Options
Height
Width
Length

Technicial Specifications Show

PRODUCT SPECIFICATIONS



STEEL MATERIALS



STRUCTURAL

Plates : Grade S355JR

Hot rolled section : Grade S275JR-S235JR

Cold Formed Steel : Grade S355JR



CONNECTION ELEMENTS

Anchor Bolts  : Grade according to ASTM F1554 or equivalent

Bolts : Grade according to ASTM A325 or equivalent

Nuts : Grade according to ASTM A194 or equivalent

Washers : Grade according to ASTM F844 or equivalent



WELDING

Supply of Welding Consumable according to AWS Specification or Equivalent



FABRICATION OF STEEL

Fabrication will be followed according to AWS D1.1: Structural Steel

WPS and Welder Qualification according to

Fit-up / Assembly / Welding according to Approved Shop or Fabrication Drawings



QA/QC

INSPECTION:

Material inspection will be as per supplied standard or Equivalent

NON DESTRUCTIVE TESTING (NDT), IF ANY

Method : VT (Visual Inspection)

Extent of Testing (%) : 100% Final Inspection



SURFACE TREATMENT & PAINTING

All primary structural components will be either Sweep blasted to Swedish SA-2 ½ standard or Solvent Cleaned for Alkyd paint system (Commercial Blast Cleaning)

INTERMEDIAT COAT 1    : Shop-Primer Epoxy Coating -  DFT (µm): 30

INTERMEDIAT COAT 2    : Anti-Corrosive Zinc Epoxy Coating - DFT (µm): 80

TOP COAT        : Epoxy Coating - DFT (µm): 50

All primary structural components will be either Sweep blasted to Swedish SA-2,5 standard or Solvent Cleaned for Alkyd paint system



GALVANIZING

Galvanizing According to:

ASTM A123 for Steel Product, Coating Grade:G90 for secondary steel members



CLADDING MATERIALS

Roof&Facade Corrugated Sheet

Type of Roof Sheet: 0.7mm Thickness Corrugated Sheet (Galvanised). 27/200 Formed. RAL9002 PU Paint. All accessories and fixing accessories are included.



SECTIONAL DOORS - Optional

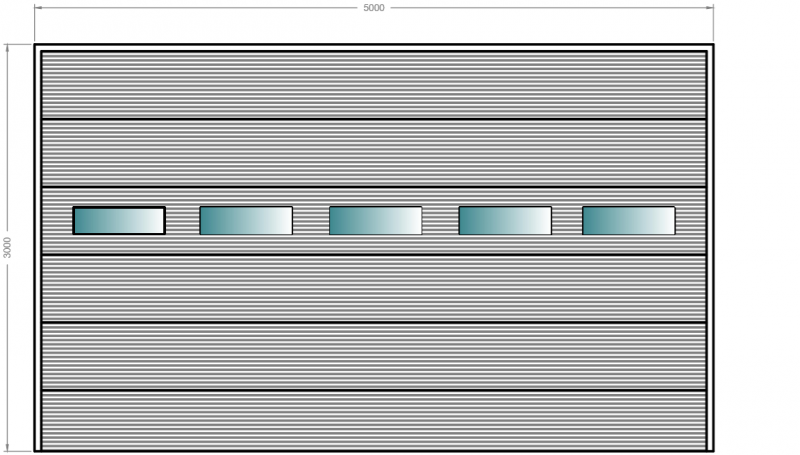

40mm PU Sandwich Panel-Fully Automatic with all necessary equipments.



FIRE ESCAPE DOORS - Optional

Steel painted doors, 1.8mm steel frame, 90mm door frame, with panic bar.



WINDOWS - Optional

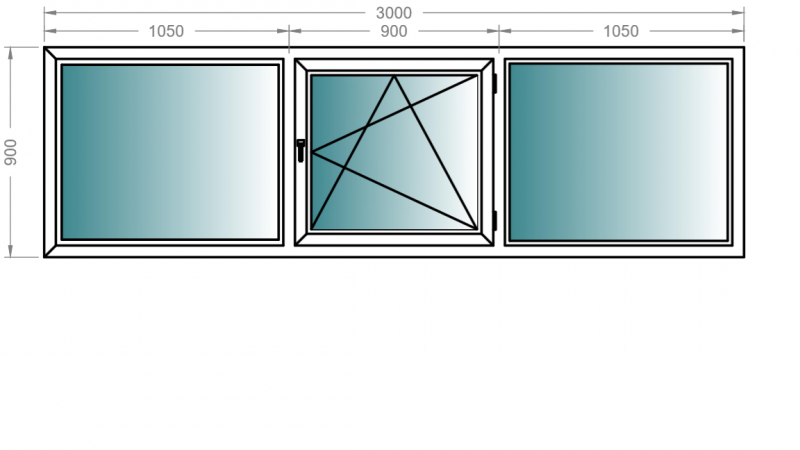

4+6+4 mm Double Glaze Glass, PVC Case.



TRANSLUCENT PANELS - Optional

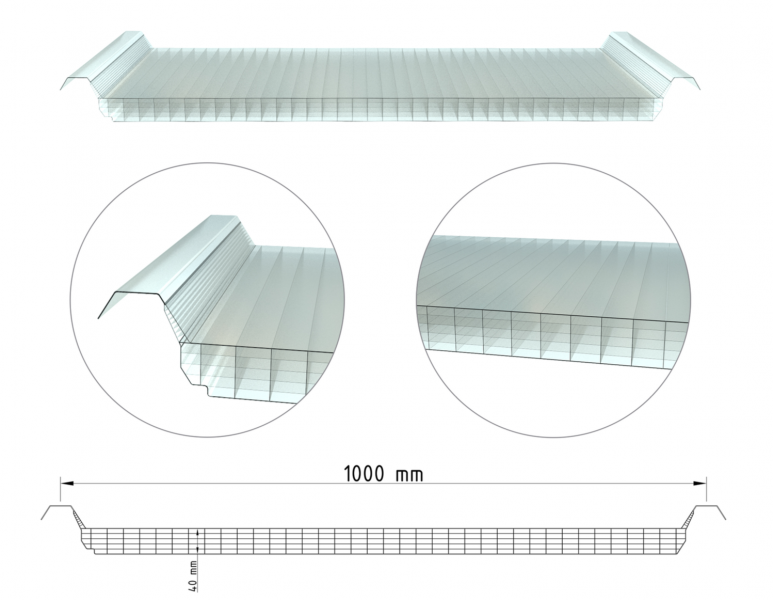

Polycarbon translucent panels - 40mm Thickness, 27/200 formed. %54 Permeability, %20 Opaque. 1000mm Width x 3000mm Length.



Summary

Name Amount Price
Total Price :
Total Weight :
ORDER

Accessories

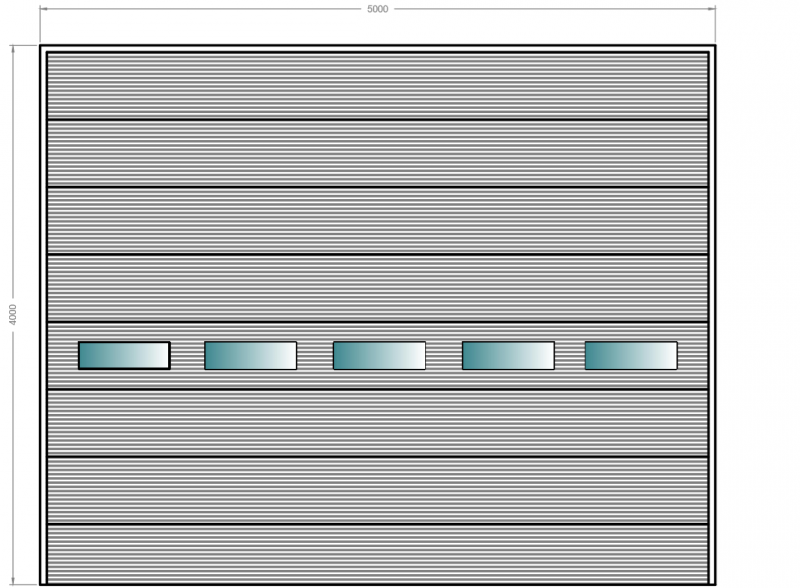

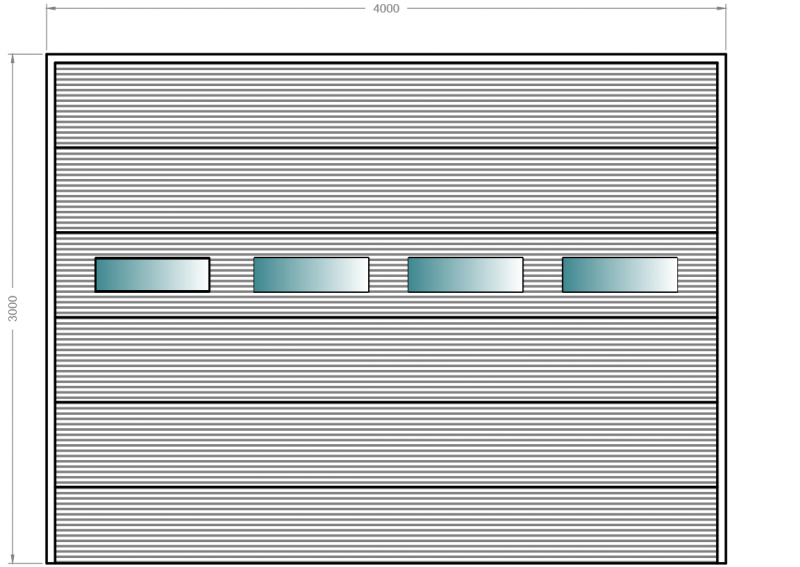

  • Sectional Automatic Doors
    400 x 300cm
    0
    500 x 300cm
    0
    500cm x 400cm
    0

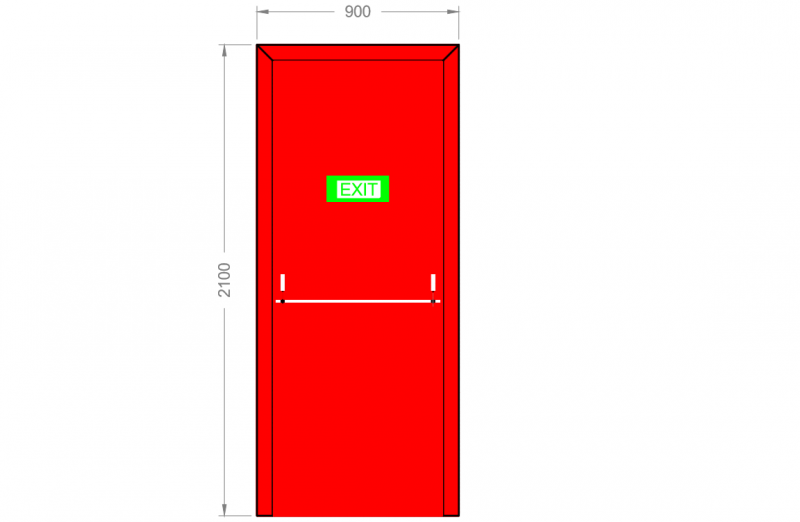

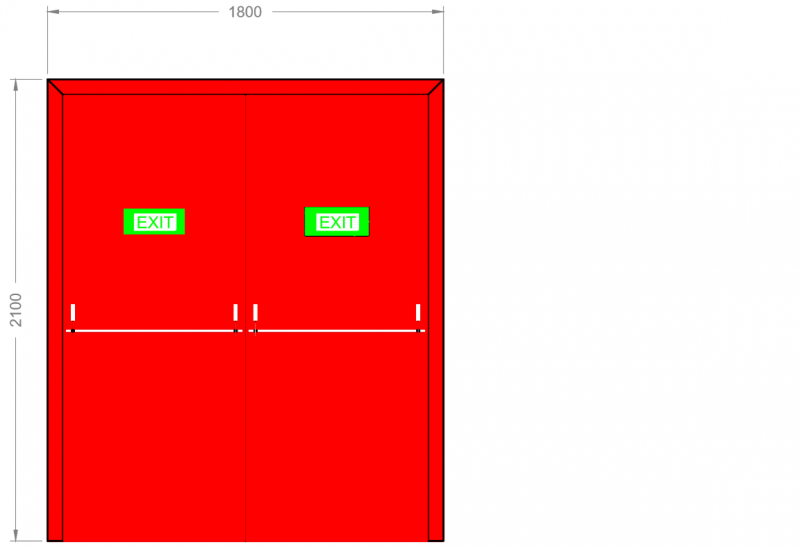

  • Fire Escape Doors
    90 x 210cm
    0
    180 x 210cm
    0

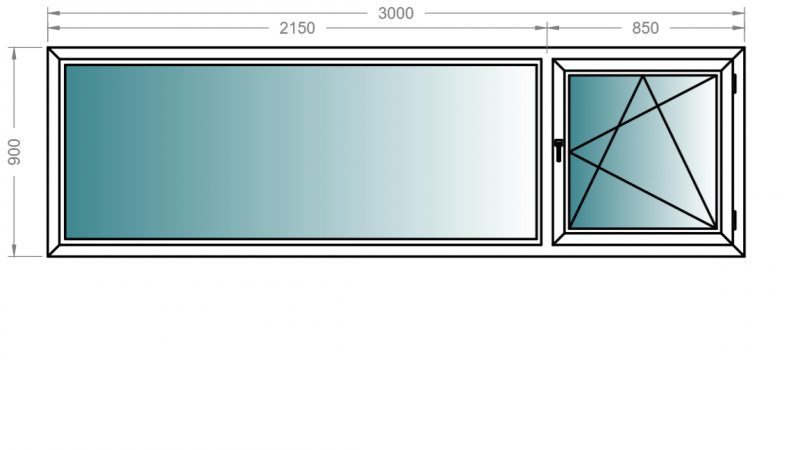

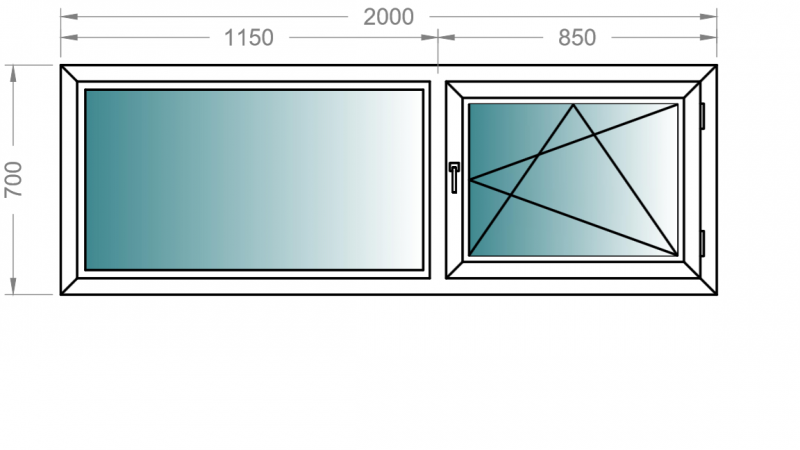

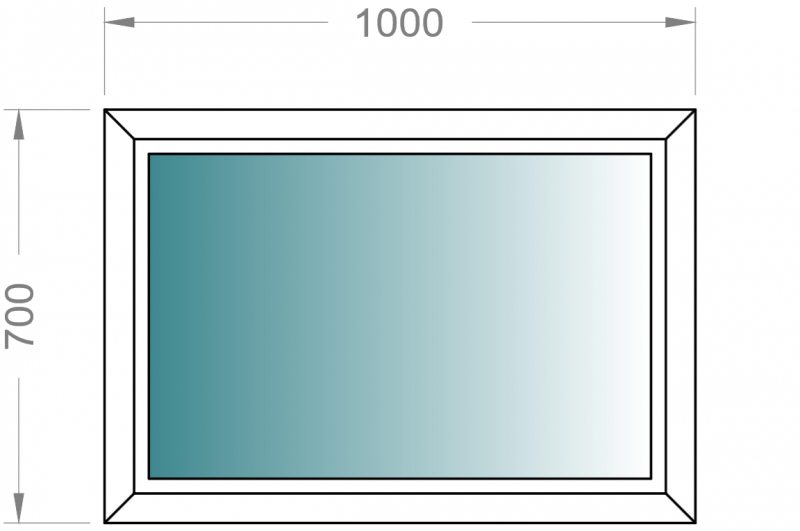

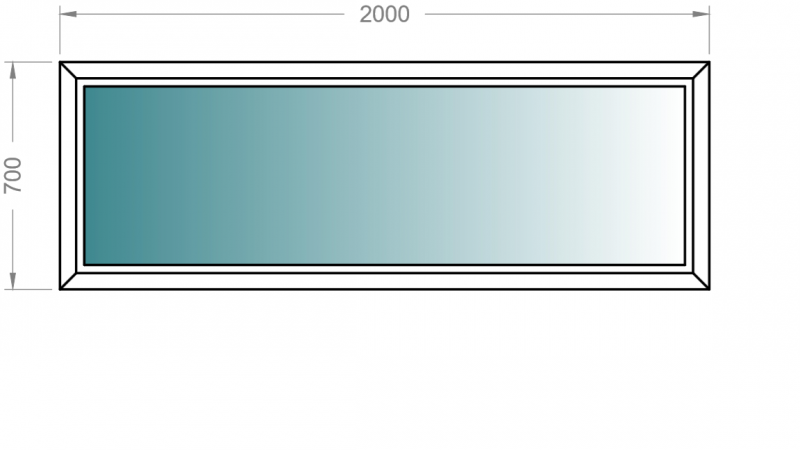

  • Windows
